Jual Fluke 725 Multifunction Process Calibrator

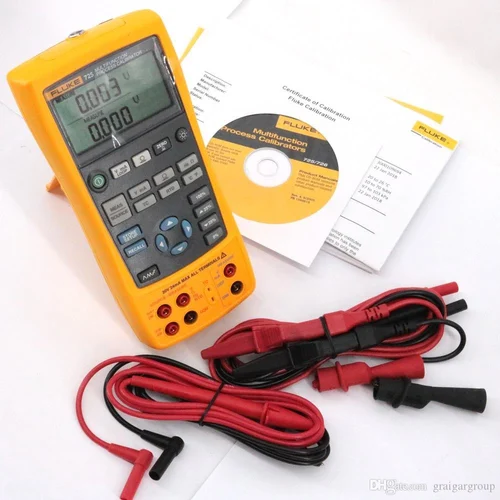

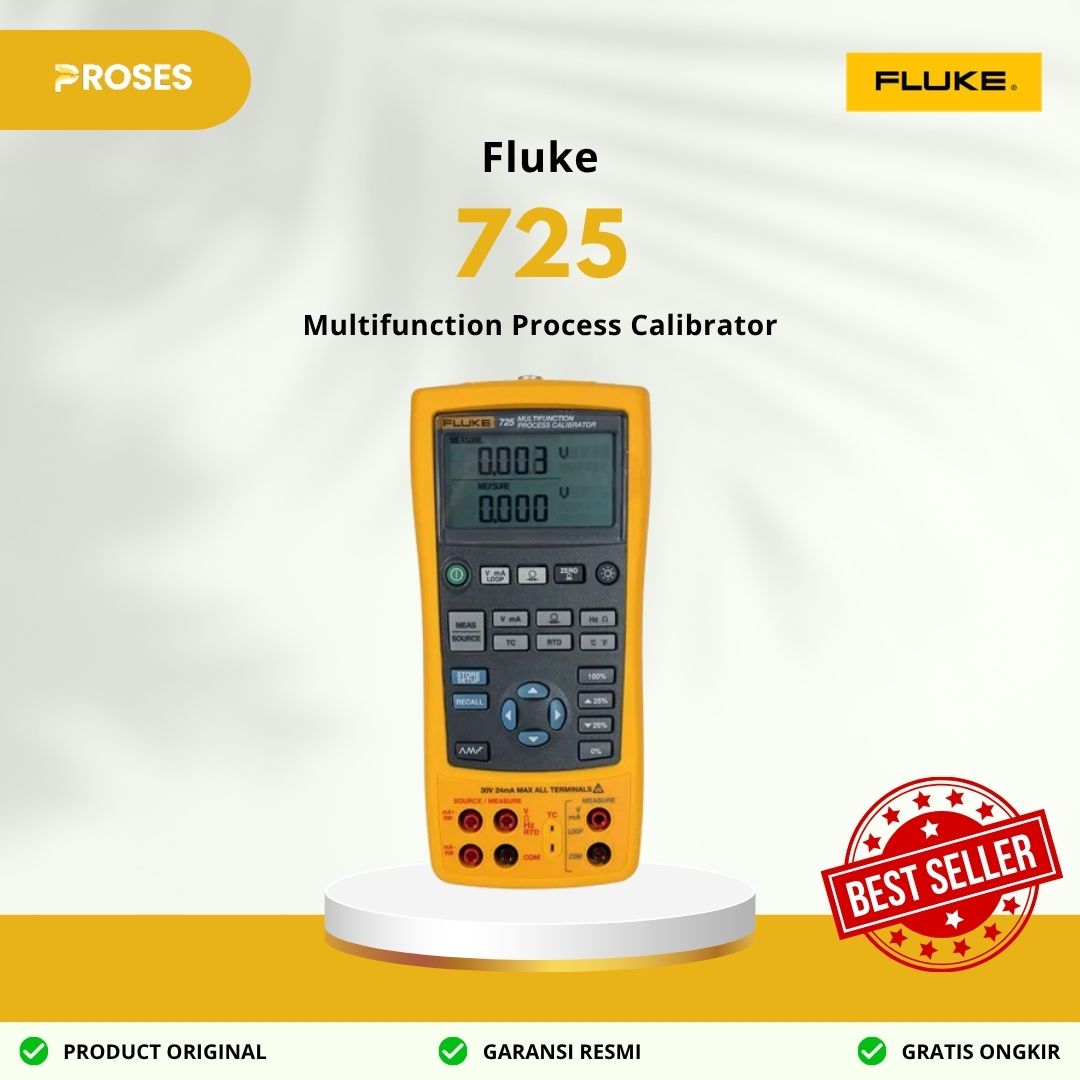

Fluke 725 Multifunction Process Calibrator

Rp 61.000.000 *Include PPN

17 produk terjual dalam 4 jam terakhir

Terjual cepat! Lebih dari 4 orang memiliki di keranjang mereka

Fluke 725 Multifunction Process Calibrator merupakan alat yang sangat andal dan fleksibel untuk kalibrasi berbagai parameter proses, membantu meningkatkan akurasi, efisiensi, dan kecepatan kerja teknisi di bidang industri.

6 orang sedang melihat ini sekarang

Garansi Resmi: Produk dijamin 100% Original & Bergaransi
Dukungan Teknis: Tim ahli siap membantu kalibrasi & purna jual

Guaranteed Safe And Secure Checkout

Fluke 725 Multifunction Process Calibrator adalah alat kalibrasi multifungsi yang digunakan untuk mengukur sekaligus menghasilkan (source) berbagai parameter proses industri. Alat ini dirancang untuk teknisi instrumentasi agar dapat melakukan pengujian, kalibrasi, dan troubleshooting pada sistem kontrol proses dengan lebih praktis dalam satu perangkat.

Fluke 725 mampu mengukur dan mensimulasikan berbagai besaran seperti arus (mA), tegangan (V), suhu menggunakan RTD dan termokopel, frekuensi, resistansi, serta tekanan dengan bantuan modul tekanan tambahan. Dengan kemampuan ini, alat dapat digunakan untuk menguji sensor, transmitter, hingga perangkat kontrol seperti PLC.

FITUR Fluke 725

Kalibrasi pemancar suhu dan tekanan
Ukur/sumber/simulasikan parameter loop mA
Ukur dan sumber mA, Volt DC, frekuensi, dan resistansi
Catu daya loop 24 V bawaan
Simpan dan ingat pengaturan kalibrasi yang sering digunakan

SPESIFIKASI Fluke 725

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	30.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Frequency	2.0 to 1000.0 CPM	0.05% + 1 count
	1.0 to 1100.0 Hz	0.05% + 1 count
	1.00 to 10.00 kHz	0.05% + 1 count
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (source)	0.02% + 2 counts
Current DC	24.000 mA (simulate)	0.02% + 2 counts
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1100.0 Hz	0.05%
	1.00 to 10.00 kHz	0.25%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to 71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming

DATASHEET Fluke 725

Download Datasheet
